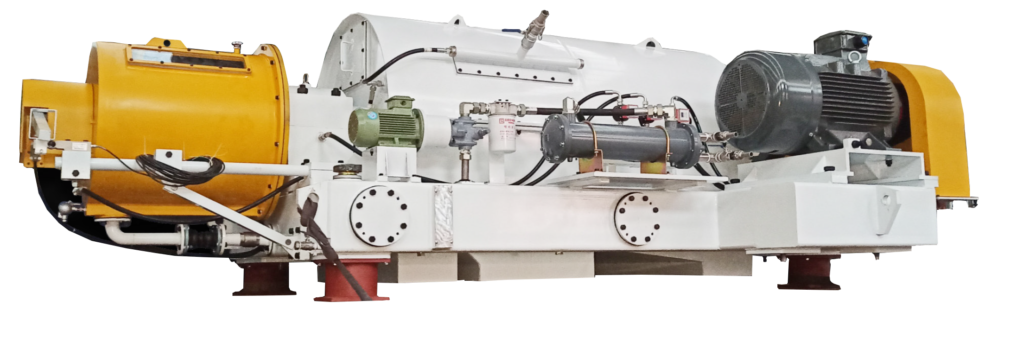

CSB SERIES
Screen Bowl Centrifuges
Precision. Efficiency. Excellence
Maximize your solid-liquid separation with the CSB Series
Screen Bowl Centrifuge, a high-efficiency solution designed
for superior performance. Engineered with a specialized
screen near the discharge area, this advanced centrifuge
significantly reduces water content, delivering exceptional
dehydration results.
Ideal for processing incompressible particles like coal powder
and inorganic crystals, the CSB Series is widely trusted in
mining, chemical industries, and beyond for fine particle
dehydration below 1 mm. Among its standout models,
the CSB1133 large screen decanter centrifuge is globally
recognized as a high-efficiency leader in fine coal slime
recovery and dehydration.
With cutting-edge manufacturing technology and industryleading production capabilities, we are among the select few
companies worldwide equipped to deliver this advanced,
high-performance equipment.
Partner with us for innovation that drives efficiency
Key Features
Superior Dewatering Efficiency
- Combines centrifugal separation and screen filtration for exceptionally low water content.
- Capable of handling large processing volumes efficiently.
Energy-Efficient with Minimal Wear
- Operates at a low rotational speed, ensuring high dewatering efficiency while reducing mechanical wear.
- Low power consumption for cost-effective operation.
Simultaneous Crystalline Washing
- Integrated rinse liquid spray enhances washing efficiency on the screen section.
- Reduces processing time while ensuring thorough purification of crystalline materials.
Operational Structure
Engineered for durability and performance, AABRA screens include:
Bowl - Primary Separation
- Combines centrifugal separation and screen filtration for exceptionally low water content.
- Capable of handling large processing volumes efficiently.
Conveyance to the Conical Zone
- The solid particles adhere to the inner surface of the bowl and move toward the conical zone.
- Here, they are lifted from the liquid pool and enter a condensed phase.

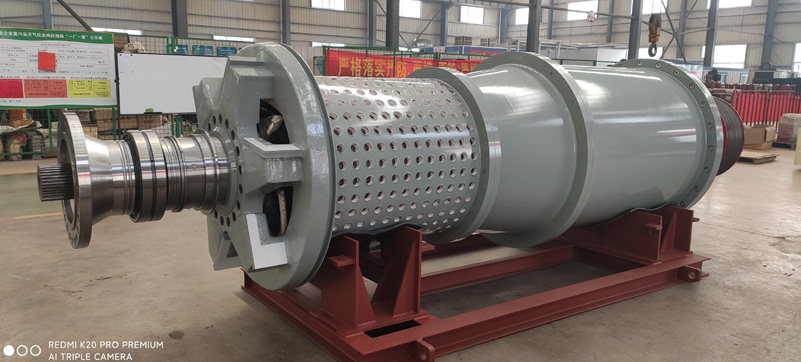

Screen - Final Dewatering Section
- The condensed solid undergoes further dewatering as it moves across the screen portion of the bowl.
- The dried material is then discharged.

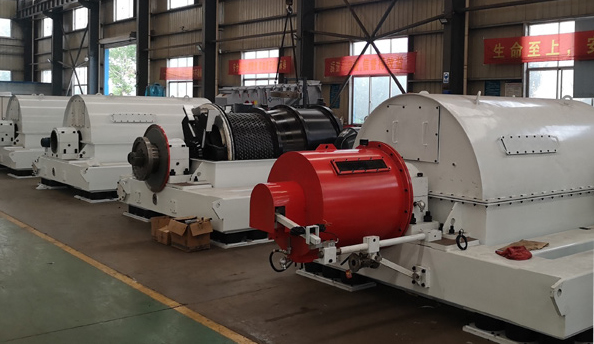

The Screen Bowl Centrifuge
delivers exceptional efficiency
in solid-liquid separation,
reducing water content, energy
consumption, and processing
time-making it a highly effective
solution for industrial applications.
|
Machine Size
|
Size Feed Size (mm)
|
Feed Solids (%)
|
Surface Moisture (%)
|
Solid Capacity (t/h)
|
Outline Dimension (mm) LxWxH
|
Power (kW)
|
Weight (Kg)
|
|---|---|---|---|---|---|---|---|
|
CSB0918
|
0.045-1
|
20-40
|
14-24%
|
10-20
|
4850x2800x1565
|
90
|
14600
|
|
CSB1218
|
0.045-1
|
20-40
|
14-24%
|
25-35
|
5930x3230x1820
|
185
|
20500
|
|
CSB1420
|
0.045-1
|
20-40
|
14-24%
|
40-60
|
5370x3400x1920
|
185
|
22300
|
|
CSB1133
|
0.045-1
|
20-40*
|
14-24%
|
35-75
|
6680x3420x1950
|
375
|
24000
|
Spare Parts
Leading Manufacturer of Premium Mineral Processing
Technology’s for the Global Coal and Minerals Industry.
At AABRA Mineral Processing
Technology, we specialize in
producing high-quality AABRA
Mineral Processing Technologies
designed to meet the rigorous
demands of the mineral
processing industry worldwide.

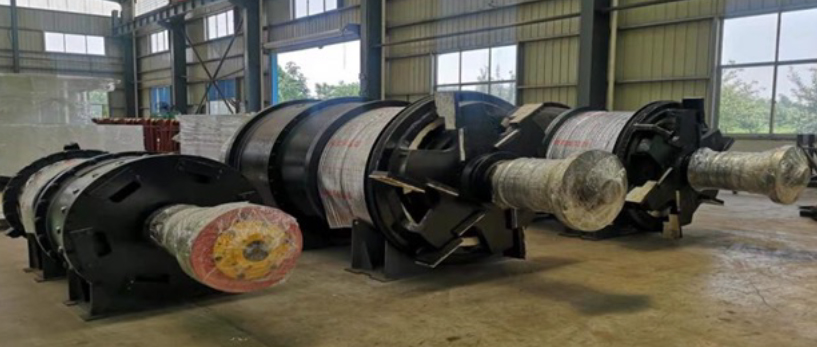

Our Screen bowl product range includes:

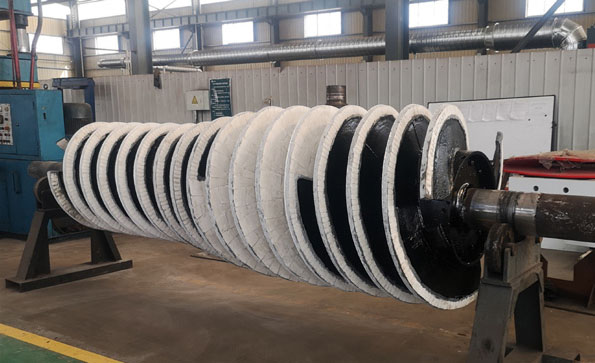

- Screw Conveyors

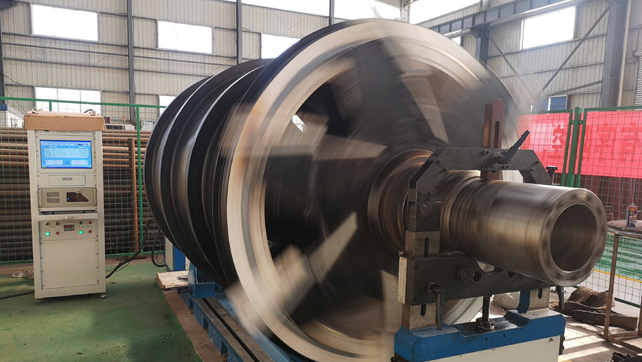

- Complete Rotors
- Gearboxes
- Other Associated spare parts
Our spare parts are crafted from the highest quality raw
materials, ensuring they meet the highest standards of
quality and reliability. Known for their cost-effectiveness,
our companies’ products provide efficient and dependable
solutions.
We are dedicated to delivering superior products and
exceptional service to our customers. At AABRA Mineral
Processing Technology, quality is the cornerstone of our
business, and customer satisfaction is our goal.
