Experience Unmatched Performance

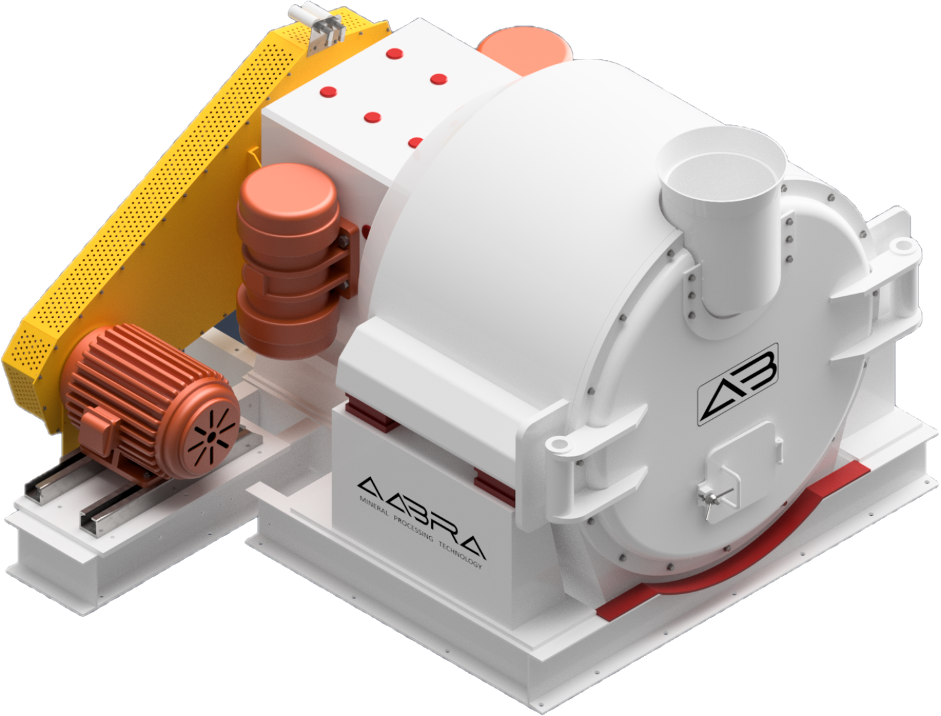

with HBC Series Centrifuge
Rotating Mechanism
Discover the exceptional capabilities of the HBC series centrifuge, equipped with premium bearings renowned for their high load capacity and low noise. Our advanced screen basket angles are engineered to maximize dewatering efficiency while maintaining high throughput. These baskets are easily adjustable, ensuring optimal performance for every application. The rotating junctions are protected by a double oil seal/labyrinth oil seal system, preventing oil leaks and contamination, thereby extending the equipment's service life.
Vibrating Component
Reliability and ease of maintenance define our dual vibrating motors. Featuring greased and sealed bearings, these motors guarantee trouble-free operation without the risk of oil leakage. Enjoy consistent performance and minimal downtime.
Water Housing Section
Built for durability, our HBC Series Centrifuge boast high-strength alumina tiles lining all wear surfaces. The box-design and CNC-machined assembly surfaces ensure high precision and alignment. All welded parts comply with the AS1554 standard and undergo NDT testing before heat treatment, ensuring superior strength, stability, and safety.
Lubrication System
Our lubrication system offers efficient lubrication and cleansing. Designed for simplicity, the maintenance of the oil feed system is straightforward, ensuring your centrifuge operates smoothly and efficiently.
|
Model
|
Nominal Capacity
|
Feed Size (mm)
|
Basket Diameter
|
Drive (kw)
|
Vibrator Motor (Kw)
|
Oil Pump Motor (Kw)
|
Weight (Kg)
|
|---|---|---|---|---|---|---|---|
|
HBC1100
|
120-150
|
1-50
|
1100
|
30
|
3.0x2
|
0.75
|
7300
|
|
HBC 1200
|
150-175
|
1-50
|
1200
|
37
|
3.0x2
|
0.75
|
7300
|
|
HBC 1300
|
180-210
|
1-50
|
1300
|
37
|
3.0x2
|
0.75
|
8300
|
|
HBC 1400
|
210-250
|
1-50
|
1400
|
45
|
3.0x2
|
0.75
|
8500
|
|
HBC 1500
|
250-300
|
1-50
|
1500
|
55
|
5.8x2
|
0.75
|
10800
|
|
HBC 1650
|
300-350
|
1-50
|
1500
|
55
|
5.8x2
|
0.75
|
11200
|
