EXCITER NHE150L
EXCITER
NHE150L
|
Description
|
NHE150L
|
|---|---|
|
Maximum Operating Speed (RPM)
|
950
|
|
Maximum Output Force (KG)
|
75635
|
|
Power Requirements (KW)
|
37
|
|
Total Weights
|
1830
|
|
Bearings
|
SKF or FAG 22330
|
|
Expected Bearing Life (L10)
|
40000hrs
|
|
Ambient Temperature
|
Operating Temperature
|
Lubrication Grade NHE150L
|
|---|---|---|
|
-15 to +35°
C
|
+15 to +65°
C
|
ISO 150 MINERAL BASE
|
|
+15 to +60°
C
|
+45 to +85°
C
|
ISO 220 MINERAL BASE
|
|
+30 to +70°
C
|
+60 to +100°
C
|
ISO 320 MINERAL BASE
|
|
Inclined angle
|
Oil Level
|
Oil volume (L) for filling an empty Exciter
|
|---|---|---|
|
°
|
mm
|
L
|
|
35
|
12~29
|
7.6~8.8
|
|
40
|
29~46
|
7.5~8.7
|
|
45
|
46~64
|
7.5~8.6
|
|
50
|
63~83
|
7.5~8.6
|
|
55
|
82~104
|
7.4~8.6
|
|
60
|
102~127
|
7.4~8.7
|
|
90
|
64~81
|
7.1~8.4
|
Note: Synthetic Oils can be used in place of Mineral based oil and is recommended for high temperature applications and harsh environment conditions.

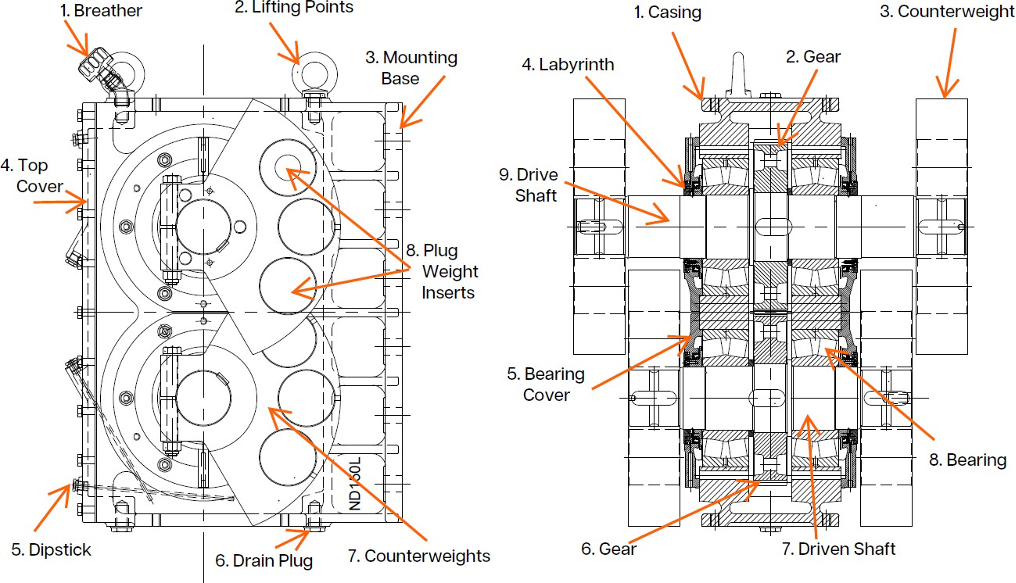

Plug weight arrangement:
hole of counterweight without plug weight
hole of counterweight hollow plug weight
hole of counterweight with plug weight
The plug weight arrangement on each
counterweight must be identical.
Plug Weight Arrangement (Hollow Steel shaft and Solid Steel shaft)
|
NHE150L
|
|
|
|
|
|
|
|
|
|
RPM (r/min)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
Static Torque (Kg.cm)
|
4290
|
5237
|
5497
|
5861
|
6293
|
6812
|
7067
|
7240
|
7497
|
|
|
Exciter Force (Kg)
|
43281
|
52835
|
55458
|
59130
|
63488
|
68724
|
71297
|
73042
|
75635
|
950
|
|
Exciter Force (Kg)
|
38845
|
47419
|
49774
|
53069
|
56981
|
61681
|
63989
|
65556
|
67883
|
900
|
|
Exciter Force (Kg)
|
34648
|
42297
|
44397
|
47337
|
50826
|
55017
|
57077
|
58474
|
60550
|
850
|
|
Exciter Force (Kg)
|
30723
|
37505
|
39367
|
41974
|
45068
|
48785
|
50611
|
51850
|
53691
|
800
|
|
Exciter Force (Kg)
|
27003
|
32964
|
34600
|
36891
|
39611
|
42877
|
44482
|
45571
|
47189
|
750
|
|
Power (kW)
|
37
|
Weight (Approx.)
|
1830kg
|
Blank Insert
Hollow Steel Insert
Solid Steel Insert
